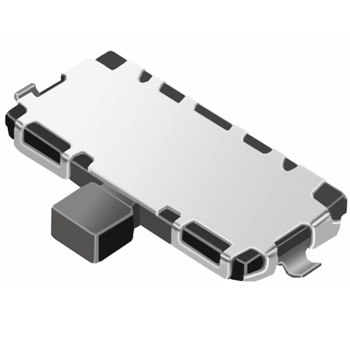

Surface mount Type ( 6.7 X 2.9mm )


1210 Series
  Rating : 1mA 5V DC
  Travel : 1.5mm

Features
  Surface mount type slide switch.
  Outline dimension 6.7mm x 2.9mm
  Ultra thin slide swith

Applications
  For keylocking mobile phones, MP3P.
  For selecting modes of digital camcorders, digital cam
  Operating signal input switches, etc.

Main specifications
Rating 1mA 5V DC
Travel 1.5mm
Contact Resistance 100 mΩ max.
(After lifetime : 150 mΩ max.)
Operating temperature '-20℃ ~ 70℃ ( 45% ~ 85% RH )
Operating Force 100gf
Operating Life 10,000 Cycles
