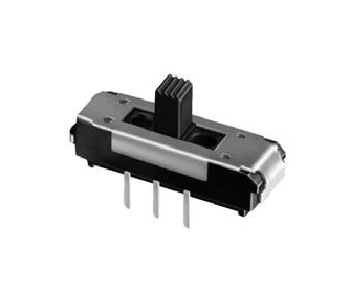

| Snap-in
Type ( 14.5 X 5 mm ) |
 |
|
1307 Series |
 |
Rating : 0.1A 12V DC |
 |
|
Travel : 2mm |
|
Features |
|
Snap-in type slide switch. |
|
Outline dimension 14.5mm x 5mm |
|
Travel : 2.0mm |
|
Horizontal operating direction. |
|
Applications |
|
For selecting modes of door-phone, telephone |
|
Office devices, Sound devices, TV set, DVD set. |
|
Operating signal input switches, etc. |
|
Main specifications |
|
| Rating |
0.1A
12V DC |
| Travel |
2mm |
| Contact
Resistance |
70
mΩ max.
(After lifetime : 130 mΩ max.) |
| Operating
temperature |
'-20℃
~ 70℃ ( 45% ~ 85% RH ) |
| Operating
Force |
ⓑ→
ⓐ, ⓒ : 300gf |
ⓐ,
ⓒ→ ⓑ : 200gf |
| Operating
Life |
10,000 Cycles |
|
|
|
 |
|
|
|
| |
 |
| |
 |
