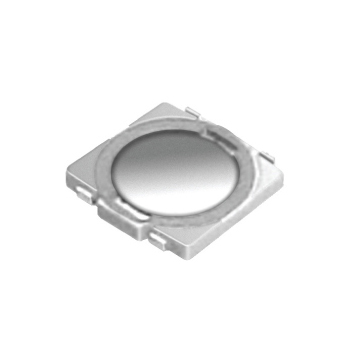

Surface mount Type (Ultra Compact Type)
1197 Series
  Rating
  1197 : 50mA 12V DC
  1198 : 20mA 15V DC
  1199 : 50mA 12V DC
  Travel
  1197 : 0.2¡¾0.1mm
  1198 : 0.2¡¾0.1mm
  1199 : 0.15¡¾0.1mm

Features
  Surface mount type tact switch.
  Dust & Moisture protective structure.
  Offering compact, Light weight.

Applications
  Operating switches in all types of electronic equipment
  Office devices, Sound devices, MP3P, PDA set.
  Camcoders, Headphone stereo set.
  Operating signal input switches, etc.


Main specifications
  1197 1198 1199
Rating 50mA 12V DC 20mA 15V DC 50mA 12V DC
Travel 0.2¡¾0.1mm 0.15¡¾0.1mm
Contact Resistance 100 m§Ù max.
Operating temperature '-20¡É ~ 70¡É ( 45% ~ 85% RH )
Bounce 10 m sec max.
Operating Force 160gf (except 1198) 250gf 350gf (only 1198)
Operating Life 100,000 Cycles
